MEGA Faster

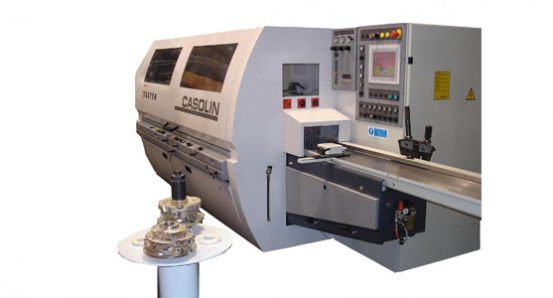

Four sided planer Casolin Mod. Mega 230/6 Faster. Base in processed steel and stabilized oversized . Protective steel cab. Ergonomic design that makes it easier to work and maintenance operations. Commands in plain view with clear symbology and unified. Placements displayed with decimal indicator. Removable floor plates. Cast iron guides with polycarbonate cover. Infeed table length 2500 mm. Number of tools shafts 6, last exchangeable shaft with HZK attack to speed all the tool changing operations. Horizontal and vertical displacement motorized and controlled 2-axis CNC. 7th shaft top bars recovery unit with pneumatic movement. Machine ALL MADE IN ITALY

Characteristics

  • Feed speed 5-25 m / min.
  • Drive roller motorized bottom
  • Shafts diameter 40 mm
  • Working length horizontal shafts 252 mm
  • Useful vertical shafts length 150 mm
  • Automatic lubrication of the plan
  • Centralized lubrication with manual pump
  • Cabin light
  • Preplaner table length 2500 mm
  • Diameter feed rollers 140 mm

Accessories
